Achieving a flawless, continuous visual flow on large-scale architectural facades often requires using long-length profile materials. However, traditional continuous exterior elements frequently face structural sagging, warping, and bending due to their own weight and thermal variations. ALumverde addresses this primary engineering challenge directly by manufacturing high-performance aluminum core composites with an authentic wood feeling, providing structural strength that remains perfectly linear over long distances.
The Engineering Challenge of Long-Length Louvers
Installing architectural tubes over extended distances requires a balanced combination of material strength and calculated support systems to prevent structural failure.
Material Selection Criteria
Selecting the appropriate structural foundation is essential to guarantee that extended facade profiles remain straight over decades of outdoor exposure.

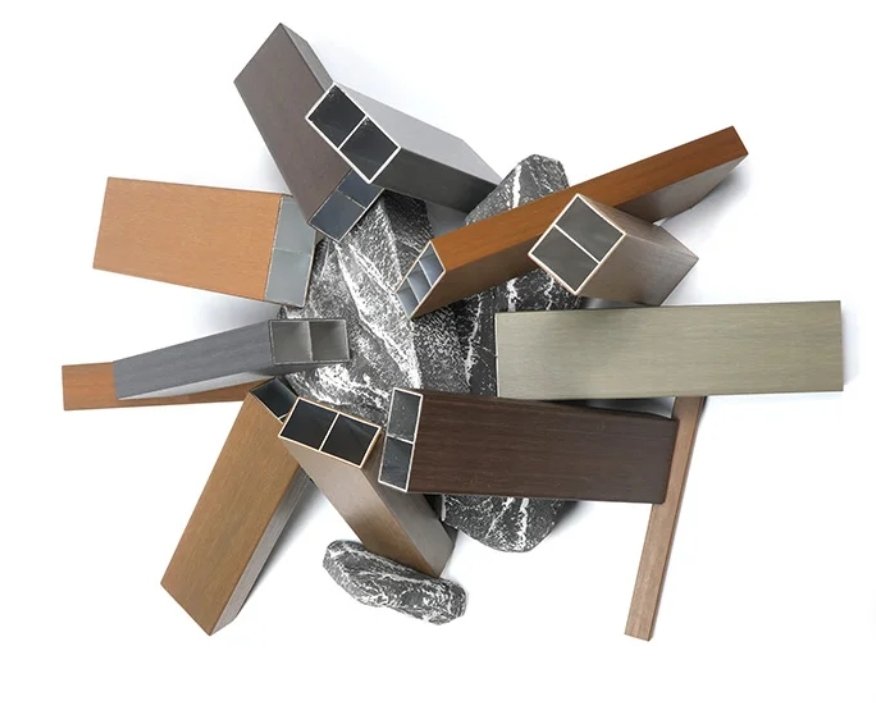

- Core Structural Integrity: Traditional timber and standard composite profiles tend to bow or twist over time, whereas our aluminum base profile provides an unyielding, high-strength foundation for each co-extrusion aluminum tube.
- Thermal Expansion Control: ALumverde co-extrusion technology features a highly stable aluminum core that exhibits a minimal expansion and contraction rate compared to standard plastic louvers.
- Dead Load Management: The lightweight design minimizes the overall dead load applied to the building facade grid, significantly lowering structural stress without compromising profile stiffness.
Environmental Stress Factors
Exterior installations must withstand intense environmental conditions that typically cause standard architectural profiles to degrade.
- High-Rise Wind Resistance: Long profiles installed on commercial towers face high wind pressures, requiring rigid core components to prevent deflection.
- Solar Heat Deflection: Traditional darker composite surfaces absorb heat and warp, but our specialized engineering layer maintains structural straightness even during extreme summer heatwaves.
- Moisture-Induced Warping: Wood-based alternatives absorb rainwater and split, while our moisture-proof technology ensures completely stable dimensions in tropical or coastal environments.

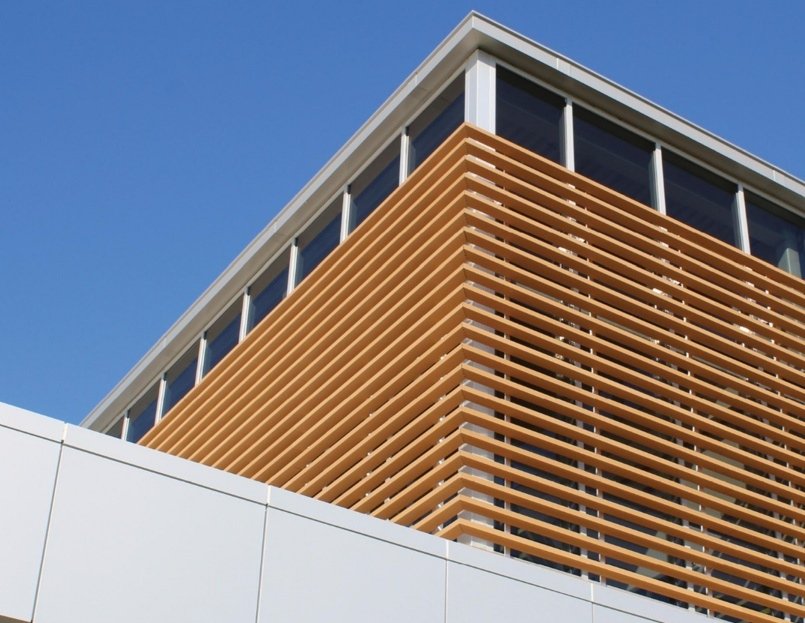

Technical Guide to Installing 6-Meter ALumverde Tubes
Successfully executing a seamless 6-meter span requires following precise professional installation protocols and choosing matching technical parameters.
Substructure and Span Planning
A perfectly aligned structural support framework is critical to preventing alignment deviations during long-profile vertical or horizontal installations.
- Maximum Joist Span Limits: For vertical installations, the structural backing must follow strict joist span limitations, allowing a maximum distance of up to 2.5 meters depending on the selected co-extrusion aluminum tube cross-section.
- Pre-Drilling Requirements: To maintain structural integrity, installers must pre-drill precise clearance holes on both the aluminum joists and the tube profiles before final screw fastening.
- Alignment Verification: Installers must use precise laser levels across the entire 6-meter width to verify that every single intermediate metal bracket is perfectly aligned along the same plane.

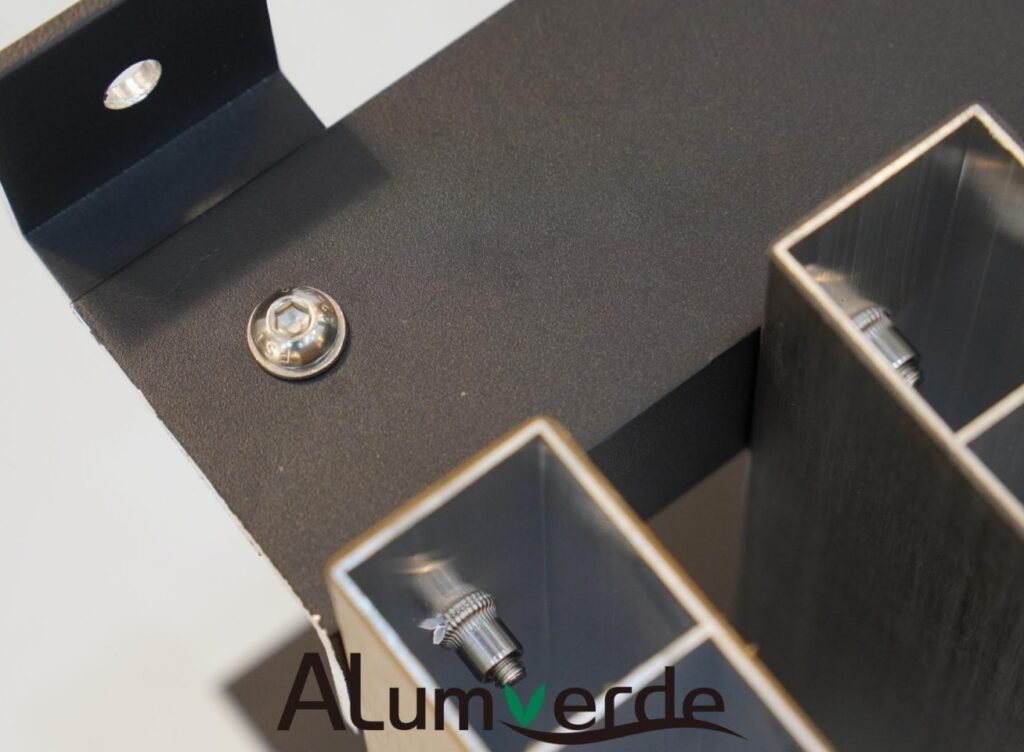

Secure Hidden Fastening Methods
Using specialized internal connection components ensures long-term wind resistance while completely hiding ugly surface hardware.
- Innovative Clip-Hidden Installation: The architectural system utilizes specialized metal brackets and customized hidden clips to lock the profile safely into place, keeping the exterior surface clean.
- Dedicated Aluminum Accessories: Utilizing matching aluminum gutters, siding models, and end caps creates a fully integrated system that seals out moisture at all connection points.
- Expansion Joint Space Allocation: Installers must preserve a minor calculated gap at the terminal joints of each 6-meter profile piece to allow for minimal structural movement.

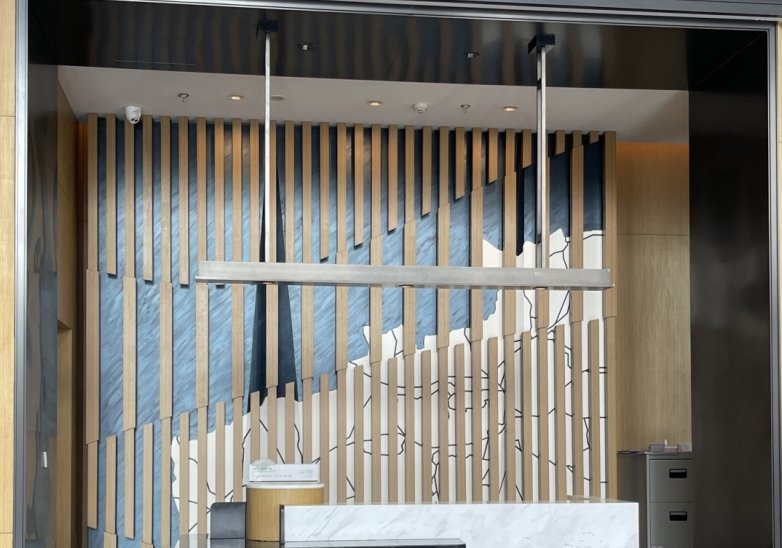

Customized and Global Project Support Services
Every commercial real estate development has distinct aesthetic goals and demanding localized structural regulations that require specialized engineering support.
Customized Design Solutions
Our manufacturing system offers tailored geometric options, enabling architects to achieve their exact project visions without design compromises.
- Tailored Profile Dimensions: Clients can select customized cross-section dimensions, including standard profiles like 120x30mm, 80x40mm, 60x50mm, and 50x30mm, to fulfill specific wind load calculations.
- Aesthetic Surface Textures: We provide multiple authentic 3D wood-grain options, such as Teak, Walnut, and IPE, delivering a premium look with excellent Class A fire-rated performance for every co-extrusion aluminum tube project.
- Customized System Integration: Our engineering department develops integrated structural solutions that combine our premium tubes, cladding, and decking products for unified building envelopes.
Technical Consultation and Delivery
Our comprehensive B2B supply services guarantee smooth construction progress from initial blueprint approval to final on-site installation.
- Engineering Document Assistance: We provide comprehensive structural data sheets, moment of inertia calculations, and ASTM E84 fireproof test reports for municipal building approvals.
- Direct Jobsite Delivery: Long 6-meter shipments are safely packed and delivered directly to international commercial construction sites to minimize handling damage and lower transit costs.
- Professional On-Site Guidance: Our technical team provides explicit installation videos and detailed step-by-step product manuals to ensure local contract crews install profiles perfectly.
Elevate Your Next Project with Structural Perfection
High-rise facades and large commercial buildings need materials that stay straight without fail. Warping, sagging, and added setup costs must not spoil your design or slow the work.
The ALumverde engineering team stands ready to assist your project from the first plans to the final install. Contact us now for a free premium sample kit. You will also receive a custom review of wind loads and local building rules. This helps cut setup risks and deliver smooth, lasting results.
FAQ
Q: What is the primary cause of structural bending in architectural louvers over long spans?
A: Bending often starts with weak core support. It also comes from a high weight-to-strength ratio. On top of that, solar heat or trapped moisture can pull the shape out of line.
Q: How do metal-cored composite tubes compare to traditional timber louvers for high-rise facades?
A: High-performance options like a co-extrusion aluminum tube handle wind loads far better. They take in no moisture at all, need no paint work over time, and cover longer spans without any change in shape.
Q: Why is a Class A fire rating mandatory for profile materials in commercial construction?
A: Building codes call for Class A materials. These slow down flame spread. They cut down on heavy smoke. They keep the structure steady long enough for a safe exit during a fire.
Q: What role does the surface layer play in the lifespan of exterior architectural profiles?
A: A strong surface layer blocks UV rays that fade color. It also resists wear from weather and keeps the natural look intact after many years outside.
