When designing high-end modern buildings, the soffit area is often a critical detail that determines the ultimate success of the exterior aesthetic. Achieving a completely flush, clean transition under the eaves can be challenging due to uneven structural framing and heavy wind loads. ALumverde provides premium aluminum-core composite building materials designed to eliminate these installation pain points. By combining the natural aesthetic of wood with the structural strength of metal, our advanced technology ensures long-term exterior durability.
Premium Engineering for Modern Soffit Applications
Soffit areas need materials that stay light but hold their shape. This stops sagging and keeps the surface smooth. Older options often bend when temperatures shift, breaking the even fit.
Material Architecture

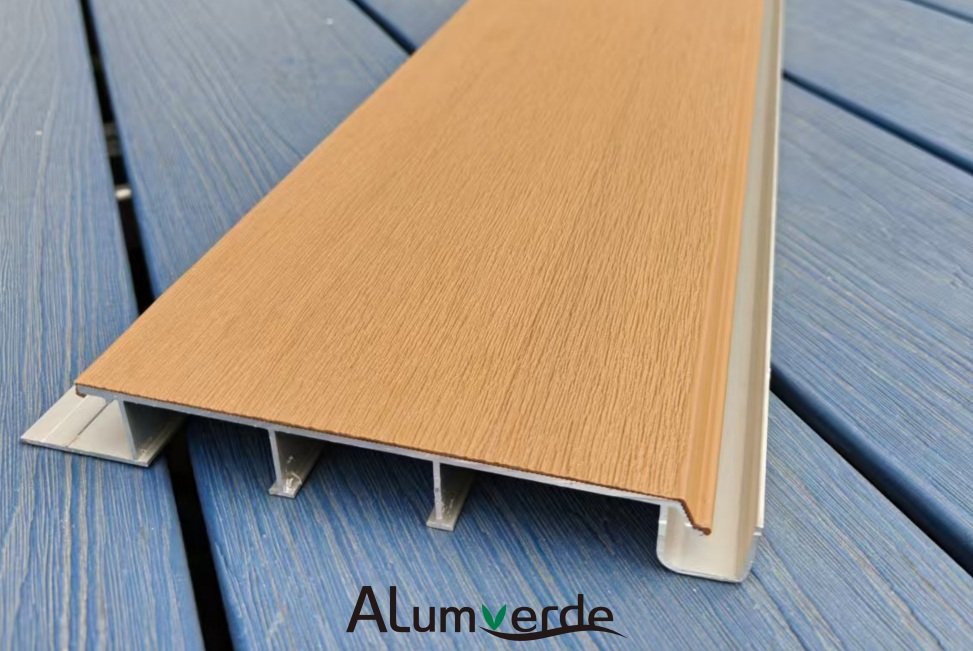

The performance of our Co-Extrusion Aluminum Shiplap Cladding comes from its layered build:
- Aluminum Core Profile: It forms a stiff base with very low expansion. The shape stays straight at lengths up to 6 meters without bending or cracking.
- Eco-Friendly Copolymer Resin: This bonding layer joins the core and outer shield with a strong, lasting hold.
- Surlyn Resin Ultra-Shield: Pressed with steady heat and pressure, the outer layer adds hardness, scratch protection, and a natural 3D wood look.
Structural Performance Benefits
These profiles help fix common issues in exterior soffit work:
- Zero Sagging over Long Spans: The aluminum core stays stiff yet light, keeping the ceiling level across wide eaves.
- Advanced Thermal Stability: Low moisture uptake and small heat movement keep the joints tight through seasonal changes.
- Class A Fire-Rated Safety: The non-combustible aluminum core meets fire rules for commercial and high-rise buildings.

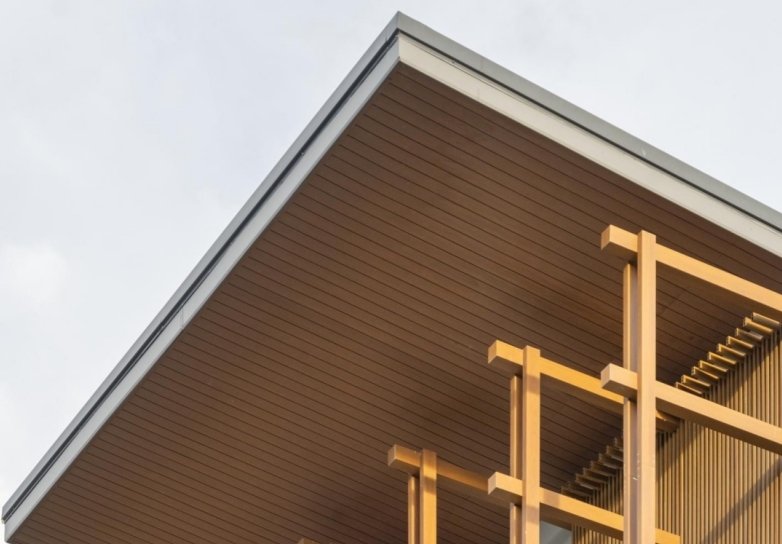

Advanced Shiplap Installation Secrets
Achieving a completely flush look with a smooth transition requires proper sub-structure alignment and precise interlocking execution. ALumverde Co-Extrusion Aluminum Cladding simplifies this process through its intentional design parameters.
Sub-Frame Preparation and Customization
The foundation of a flush soffit lies within the precision of the underlying joist network and tailored component dimensions:
- Joist Leveling: Install structural aluminum joists at a maximum span of 500mm, checking the plane with a laser level to correct any framing variances.
- Soffit Customized Cutting: The profiles can be supplied in customized lengths directly from the factory to reduce job-site waste and ensure seamless edge-to-edge fitting.
- Customized Trim Configuration: Utilize dedicated aluminum starter strips, transition trims, and corner trims to completely conceal structural boundaries.

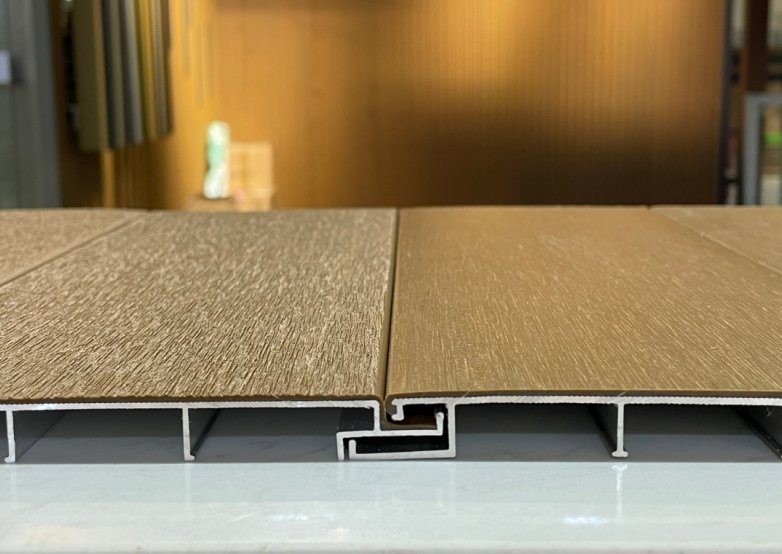

Seamless Profile Interlocking
The proprietary shiplap connection is engineered to automatically guide the panels into a flush alignment:
- Hidden Clip System: Specialized installation brackets clip into the groove and fix directly to the joist, leaving the face of the board entirely clear of visible screws.
- Automatic Gap Management: The engineered joint controls expansion gaps naturally, preserving a uniform parallel shadow line across the ceiling.
- End-Match Integrity: Precision alignment prevents uneven panel lips, providing an authentic flat wood ceiling aesthetic under commercial eaves.
Architectural Case Studies: Solving Eave Design Challenges
Soffit areas face intense weather pressures, demanding specialized engineering to maintain an unblemished appearance over time. Our composite solution replaces high-maintenance timber in critical architectural environments.

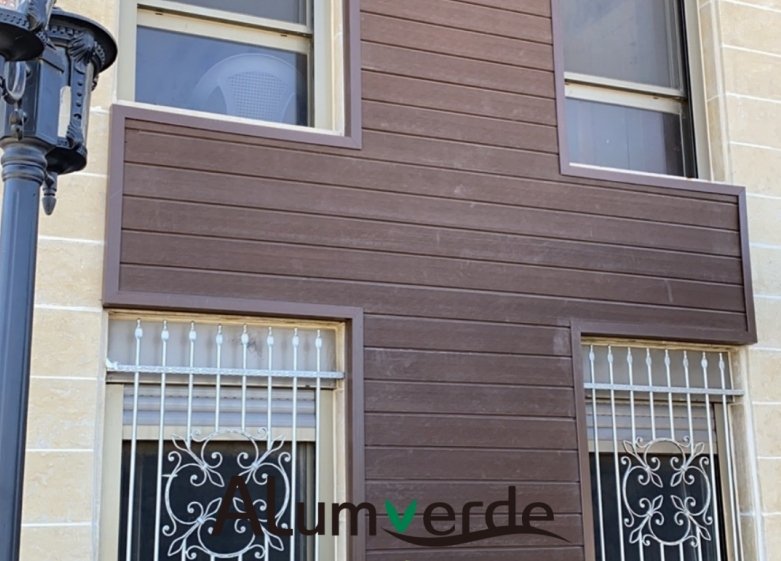

Coastal Commercial Developments
Oceanfront properties expose soffits to high moisture, salt spray, and extreme wind upward pressures:
- Corrosion Elimination: The protective outer shield completely seals the core, preventing rust or bubbling common in coastal environments.
- Wind-Load Resistance: The robust interlock prevents individual boards from dislodging during high-velocity wind storms.
- Fade-Free Appearance: High-grade UV protection ensures that the rich grain remains uniform without needing frequent painting or staining.
Mid-Rise Residential Balcony Ceilings
Modern multi-family residential structures require uniform continuous aesthetics stretching from the interior to exterior overhangs:
- Weight Reduction: Being half the weight of standard co-extrusion WPC cladding, it minimizes dead loads on cantilevered structures.
- Low Auxiliary Expenses: Lightweight properties speed up overhead installation, significantly reducing on-site labor times and scaffolding hire costs.
- Stain and Maintenance Defenses: The non-porous surface protects against moisture stains and insect infestations, remaining clean with minimal washing.
Optimize Your Project with ALumverde Technical Services
Achieving architectural perfection relies on matching precise manufacturing capabilities with detailed structural planning. We support project managers through specialized technical consultations and customized production workflows.
Tailored Manufacturing and Logistics
We align our production capabilities with your specific building layouts to streamline supply lines:
- Customized Color Formulation: Match your architectural color palette with bespoke wood grain finishes tailored for high-profile designs.
- Customized Profile Extrusion: Order specialized lengths to fit exact eave depths, ensuring clean installation and fast project turnaround times.
- Global Shipping Compliance: Materials are packaged securely to prevent transport damage and ensure immediate deployment upon arrival.
Comprehensive Engineering Assistance
Our technical support teams assist in optimizing sub-structure planning and architectural details:
- Detailed Installation Manuals: Step-by-step documentation guides on-site teams through clip placement and profile trimming.
- Architectural Detail Drafting: Receive technical layouts for complex transitions, ensuring clean edge terminations.
- Free Sample Distribution: Request physical profile components to evaluate texture, weight, and interlocking flush performance first-hand.
Transform Your Next Architectural Soffit Design
Elevate your exterior designs with the premium strength and lifelike warmth of ALumverde Co-Extrusion Aluminum Shiplap Cladding. Our engineering team is ready to provide comprehensive technical data sheets, free product samples, and specialized customized production plans to suit your exact design parameters. Contact us today to secure a flat, stable, and low-maintenance soffit finish for your next high-end development.
FAQ
Q: How does aluminum-core composite cladding prevent oil canning or thermal warping in soffits?
A: The thick structural aluminum core gives strong rigidity. The multi-layer outer shield cuts heat absorption so the panels stay flat.
Q: Can composite shiplap cladding be installed directly onto wooden sub-framing for soffit applications?
A: Yes, but treated aluminum joists work better. They keep the sub-frame level and match the cladding’s long life.
Q: What is the fire resistance classification for aluminum-core shiplap cladding materials?
A: The non-combustible aluminum core helps the material reach Class A fire-rated standards. These standards apply to commercial and high-rise buildings.
Q: How do hidden clip interlocking systems withstand high wind loads in open eave soffits?
A: The clips hold the full inner groove of the profile. They spread loads evenly along the joists and handle strong upward wind pressure.
